Okay did some Haproxy 1.8.3 tests and yes the HTTP/2 slowness compared to HTTP/1.1 might be related to images specifically. If you test non-image requests, HTTP/2 is faster while image requests HTTP/2 are slower.
haproxy -vv
HA-Proxy version 1.8.3-205f675 2017/12/30
Copyright 2000-2017 Willy Tarreau <willy@haproxy.org>
Build options :
TARGET = linux2628
CPU = native
CC = gcc
CFLAGS = -march=native -m64 -march=x86-64 -O2 -g
OPTIONS = USE_LINUX_SPLICE=1 USE_LINUX_TPROXY=1 USE_ZLIB=1 USE_REGPARM=1 USE_THREAD=1 USE_OPENSSL=1 USE_LUA=1 USE_PCRE=1 USE_PCRE_JIT=1
Default settings :
maxconn = 2000, bufsize = 16384, maxrewrite = 1024, maxpollevents = 200
Built with OpenSSL version : OpenSSL 1.1.0g 2 Nov 2017
Running on OpenSSL version : OpenSSL 1.1.0g 2 Nov 2017
OpenSSL library supports TLS extensions : yes
OpenSSL library supports SNI : yes
OpenSSL library supports : TLSv1.0 TLSv1.1 TLSv1.2
Built with Lua version : Lua 5.3.4
Built with transparent proxy support using: IP_TRANSPARENT IPV6_TRANSPARENT IP_FREEBIND
Encrypted password support via crypt(3): yes
Built with multi-threading support.
Built with PCRE version : 8.41 2017-07-05
Running on PCRE version : 8.41 2017-07-05
PCRE library supports JIT : yes
Built with zlib version : 1.2.8
Running on zlib version : 1.2.8
Compression algorithms supported : identity("identity"), deflate("deflate"), raw-deflate("deflate"), gzip("gzip")
Built with network namespace support.
Available polling systems :
epoll : pref=300, test result OK
poll : pref=200, test result OK
select : pref=150, test result OK
Total: 3 (3 usable), will use epoll.
Available filters :
[SPOE] spoe
[COMP] compression
[TRACE] trace

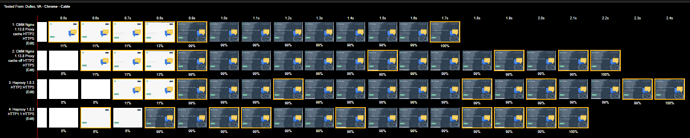

webpagetest filmstrips comparing
- Centmin Mod Nginx 1.13.8 with proxy_cache and without proxy_cache
- Haproxy 1.8.3 HTTP/2 HTTPS
- Haproxy 1.8.3 HTTP/1.1 HTTPS
Visually Complete
Document Complete
Fully Loaded
nghttp2 h2load HTTP/1.1 and HTTP/2 HTTPS tests
- port 447 = haproxy HTTP/1.1 HTTPS
- port 444 = haproxy HTTP/2 HTTPS
for static index.html pages
port 447 = haproxy HTTP/1.1 HTTPS
/usr/local/bin/h2load -p http/1.1 -t2 -c50 -m100 -n10000 -H 'Accept-Encoding: gzip' https://baremetal.domain.com:447/
starting benchmark...
spawning thread #0: 25 total client(s). 5000 total requests
spawning thread #1: 25 total client(s). 5000 total requests
TLS Protocol: TLSv1.2
Cipher: ECDHE-RSA-AES128-GCM-SHA256
Server Temp Key: ECDH P-256 256 bits
Application protocol: http/1.1
progress: 10% done
progress: 20% done
progress: 30% done
progress: 40% done
progress: 50% done
progress: 60% done
progress: 70% done
progress: 80% done
progress: 90% done
progress: 100% done
finished in 357.96ms, 27935.93 req/s, 102.77MB/s
requests: 10000 total, 10000 started, 10000 done, 10000 succeeded, 0 failed, 0 errored, 0 timeout
status codes: 10000 2xx, 0 3xx, 0 4xx, 0 5xx
traffic: 36.79MB (38573750) total, 4.63MB (4853750) headers (space savings 0.00%), 31.33MB (32850000) data
min max mean sd +/- sd
time for request: 518us 214.16ms 122.48ms 54.81ms 68.33%
time for connect: 11.35ms 21.57ms 16.64ms 2.87ms 58.00%
time to 1st byte: 14.56ms 29.50ms 18.67ms 3.24ms 72.00%
req/s : 559.41 655.22 592.42 24.24 76.00%
port 444 = haproxy HTTP/2 HTTPS
/usr/local/bin/h2load -t2 -c50 -m100 -n10000 -H 'Accept-Encoding: gzip' https://baremetal.domain.com:444/
starting benchmark...
spawning thread #0: 25 total client(s). 5000 total requests
spawning thread #1: 25 total client(s). 5000 total requests
TLS Protocol: TLSv1.2
Cipher: ECDHE-RSA-AES128-GCM-SHA256
Server Temp Key: ECDH P-256 256 bits
Application protocol: h2
progress: 10% done
progress: 20% done
progress: 30% done
progress: 40% done
progress: 50% done
progress: 60% done
progress: 70% done
progress: 80% done
progress: 90% done
progress: 100% done
finished in 220.87ms, 45276.53 req/s, 92.80MB/s
requests: 10000 total, 10000 started, 10000 done, 10000 succeeded, 0 failed, 0 errored, 0 timeout
status codes: 10000 2xx, 0 3xx, 0 4xx, 0 5xx
traffic: 20.50MB (21490962) total, 4.09MB (4283750) headers (space savings 8.93%), 16.15MB (16930000) data
min max mean sd +/- sd
time for request: 11.02ms 165.97ms 68.03ms 25.02ms 71.41%
time for connect: 10.10ms 28.82ms 20.56ms 4.77ms 68.00%
time to 1st byte: 23.29ms 111.87ms 67.16ms 24.58ms 62.00%
req/s : 909.67 1653.41 1122.10 181.65 74.00%
for png image
port 447 = haproxy HTTP/1.1 HTTPS
/usr/local/bin/h2load -p http/1.1 -t2 -c50 -m100 -n10000 -H 'Accept-Encoding: gzip' https://baremetal.domain.com:447/images/slide2.png
starting benchmark...
spawning thread #0: 25 total client(s). 5000 total requests
spawning thread #1: 25 total client(s). 5000 total requests
TLS Protocol: TLSv1.2
Cipher: ECDHE-RSA-AES128-GCM-SHA256
Server Temp Key: ECDH P-256 256 bits
Application protocol: http/1.1
progress: 10% done
progress: 20% done
progress: 30% done
progress: 40% done
progress: 50% done
progress: 60% done
progress: 70% done
progress: 80% done
progress: 90% done
progress: 100% done
finished in 2.27s, 4397.64 req/s, 1.04GB/s
requests: 10000 total, 10000 started, 10000 done, 10000 succeeded, 0 failed, 0 errored, 0 timeout
status codes: 10000 2xx, 0 3xx, 0 4xx, 0 5xx
traffic: 2.36GB (2534863750) total, 4.24MB (4443750) headers (space savings 0.00%), 2.36GB (2529710000) data
min max mean sd +/- sd
time for request: 2.18ms 2.10s 804.63ms 380.48ms 75.73%
time for connect: 5.58ms 22.30ms 15.11ms 3.93ms 70.00%
time to 1st byte: 14.57ms 28.97ms 20.40ms 4.10ms 50.00%
req/s : 87.98 104.10 96.25 3.88 76.00%
port 444 = haproxy HTTP/2 HTTPS
/usr/local/bin/h2load -t2 -c50 -m100 -n10000 -H 'Accept-Encoding: gzip' https://baremetal.domain.com:444/images/slide2.png
starting benchmark...
spawning thread #0: 25 total client(s). 5000 total requests
spawning thread #1: 25 total client(s). 5000 total requests
TLS Protocol: TLSv1.2
Cipher: ECDHE-RSA-AES128-GCM-SHA256
Server Temp Key: ECDH P-256 256 bits
Application protocol: h2
progress: 10% done
progress: 20% done
progress: 30% done
progress: 40% done
progress: 50% done
progress: 60% done
progress: 70% done
progress: 80% done
progress: 90% done
progress: 100% done
finished in 3.08s, 3244.12 req/s, 784.88MB/s
requests: 10000 total, 10000 started, 10000 done, 10000 succeeded, 0 failed, 0 errored, 0 timeout
status codes: 10000 2xx, 0 3xx, 0 4xx, 0 5xx
traffic: 2.36GB (2536928095) total, 3.66MB (3833750) headers (space savings 16.00%), 2.36GB (2529710000) data
min max mean sd +/- sd
time for request: 35.43ms 2.47s 1.11s 349.90ms 70.71%
time for connect: 5.42ms 29.75ms 16.00ms 6.16ms 72.00%
time to 1st byte: 23.08ms 199.11ms 89.85ms 34.39ms 68.00%
req/s : 64.90 104.36 81.36 8.74 74.00%
For tests used my w3layout flatmate theme test site which you can find at GitHub - centminmod/testpages
Just noticed for Haproxy HTTP/2 h2load tests comparing png image vs static index.html, that header space savings for HPACK compression has a higher compression ratio for png image than static index.html at 16% saved vs 8.93% saved ? Why would png images compress more ?
Haproxy HTTP/1.1. HTTPS index.html
curl -I https://baremetal.domain.com:447/
HTTP/1.1 200 OK
Date: Fri, 09 Feb 2018 18:09:17 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 4074
Last-Modified: Sun, 04 Feb 2018 12:30:13 GMT
Vary: Accept-Encoding
ETag: "5a76fcd5-fea"
Server: nginx centminmod
X-Powered-By: centminmod
Expires: Sun, 11 Mar 2018 18:09:17 GMT
Cache-Control: max-age=2592000
Access-Control-Allow-Origin: *
Cache-Control: public, must-revalidate, proxy-revalidate, immutable, stale-while-revalidate=86400, stale-if-error=604800
Accept-Ranges: bytes
Set-Cookie: SERVERID=1_server5; path=/
Haproxy HTTP/2. HTTPS index.html
curl -I https://baremetal.domain.com:444/
HTTP/2 200
date: Fri, 09 Feb 2018 18:09:21 GMT
content-type: text/html; charset=utf-8
content-length: 4074
last-modified: Sun, 04 Feb 2018 12:30:13 GMT
vary: Accept-Encoding
etag: "5a76fcd5-fea"
server: nginx centminmod
x-powered-by: centminmod
expires: Sun, 11 Mar 2018 18:09:21 GMT
cache-control: max-age=2592000
access-control-allow-origin: *
cache-control: public, must-revalidate, proxy-revalidate, immutable, stale-while-revalidate=86400, stale-if-error=604800
accept-language: bytes
set-cookie: SERVERID=1_server6; path=/
Haproxy HTTP/1.1. HTTPS png image
curl -I https://baremetal.domain.com:447/images/slide2.png
HTTP/1.1 200 OK
Date: Fri, 09 Feb 2018 19:10:42 GMT
Content-Type: image/png
Content-Length: 252971
Last-Modified: Fri, 09 Feb 2018 18:24:25 GMT
ETag: "5a7de759-3dc2b"
Server: nginx centminmod
X-Powered-By: centminmod
Expires: Sun, 11 Mar 2018 19:10:42 GMT
Cache-Control: max-age=2592000
Access-Control-Allow-Origin: *
Cache-Control: public, must-revalidate, proxy-revalidate, immutable, stale-while-revalidate=86400, stale-if-error=604800
Accept-Ranges: bytes
Set-Cookie: SERVERID=1_server10; path=/
Haproxy HTTP/2. HTTPS png image
curl -I https://baremetal.domain.com:444/images/slide2.png
HTTP/2 200
date: Fri, 09 Feb 2018 19:10:58 GMT
content-type: image/png
content-length: 252971
last-modified: Fri, 09 Feb 2018 18:24:25 GMT
etag: "5a7de759-3dc2b"
server: nginx centminmod
x-powered-by: centminmod
expires: Sun, 11 Mar 2018 19:10:58 GMT
cache-control: max-age=2592000
access-control-allow-origin: *
cache-control: public, must-revalidate, proxy-revalidate, immutable, stale-while-revalidate=86400, stale-if-error=604800
accept-language: bytes
set-cookie: SERVERID=1_server11; path=/
