Apache vHost doesnt work behind HaProxy

JuKu · August 8, 2018, 4:16pm

Hi all together,

i am using HaProxy as proxy for an apache2 webserver setup.
Apache2 is listening on port 8080 and HaProxy is listening on port 80 and 443. I am also using SSL.
If i browse phab.example.com:8080 (domain changed here) everything is working fine, vHosts works and so on.
But if i browse phab.example.com (which requests to HaProxy), i always get the content of /var/www/html and i dont know why.

My HaProxy configuration /etc/haproxy/haproxy.cfg:

gist.github.com

https://gist.github.com/JuKu/63440a678df17e1b9fb2ccf3057ac1c9

haproxy.cfg

global
	log /dev/log	local0
	log /dev/log	local1 notice
	chroot /var/lib/haproxy
	stats socket /run/haproxy/admin.sock mode 660 level admin
	stats timeout 30s
	user haproxy
	group haproxy
	daemon

This file has been truncated. show original

Apache ports.conf:

gist.github.com

https://gist.github.com/JuKu/7b7ecf3c1189e232b5aeacce76042948

ports.conf

# If you just change the port or add more ports here, you will likely also
# have to change the VirtualHost statement in
# /etc/apache2/sites-enabled/000-default.conf

Listen 8080

<IfModule ssl_module>
	Listen 4433
</IfModule>

This file has been truncated. show original

vHost /etc/apache2/sites-enabled/35_froxlor_normal_vhost_phab.linetec-studio.com.conf:

gist.github.com

https://gist.github.com/JuKu/daefc26567d81c52543fa42caf24730a

35_froxlor_normal_vhost_phab.linetec-studio.comt.conf

# 35_froxlor_normal_vhost_phab.linetec-studio.comt.conf
# Created 08.08.2018 16:58
# Do NOT manually edit this file, all changes will be deleted after the next domain change at the panel.

# Domain ID: 4 - CustomerID: 2 - CustomerLogin: phabricator
<VirtualHost 193.30.121.191:8080 193.30.121.191:80 193.30.121.191:443>
  ServerName phab.example.com
  ServerAlias *.phab.example.com
  ServerAdmin root@example.com
  DocumentRoot "/var/customers/webs/phabricator/"

This file has been truncated. show original

Whats the problem?
Please help me. Thank you!

EDIT:
I have moved configuration files to github gist, so it is formatted better.

JuKu · August 8, 2018, 4:29pm

I have also cheched the HTTP headers.

phab.example.com:8080 (working example):

JuKu · August 8, 2018, 4:30pm

Sry for splitted posts - as a new user i cannot put 2 images or more than 2 links in one post.

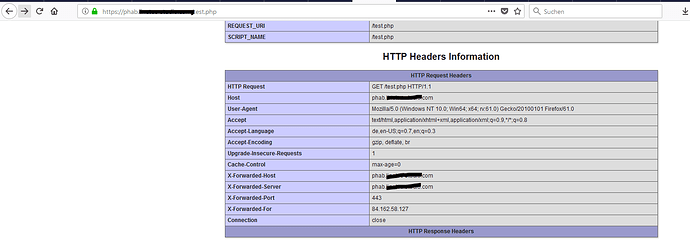

phab.example.com (not working, over HaProxy):

JuKu · August 8, 2018, 4:49pm

I have fixed the problem now!
Apache2 vHosts only listen on public server ip, not on internal 127.0.0.1 ip.
So i have to change backend line server phab1 127.0.0.1:8080 check to server phab1 193.30.xxx.xxx:8080 check.
